Overview

This section lists the requirements for incorporating extended joystick support in titles development, and compares the features of various versions of the extended joystick. Topics include:

Requirements

Requirements for incorporating extended joystick support in titles development include:

Features of the Extended Joystick

The three-axis, extended joystick manufactured by CH Products offers the following features:

The table below provides a description of the features available on various versions of the extended joystick:

Table 1:   Joystick versions and features.
--------------------------------------------------------
Feature          |Description
--------------------------------------------------------
4 single buttons |Includes one fire button in the index
                 |finger position,and three additional
                 |buttons (A, B, and C) on the extended
                 |joystick handle.
--------------------------------------------------------
4Ðway switch     |Located in thumb position. The consumer
                 |extended joystick comes with a single
                 |4-way switch, or 4 single buttons
                 |placed in a diamond pattern.
--------------------------------------------------------
x and y axis     |Consumer versions of the extended
movement         |joystick are permitted a maximum of
                 |10-bit precision in each direction.
                 |8-bit precision is the minimum allowed.
--------------------------------------------------------
Auxiliary axis   |Consumer versions of the extended
control          |joystick are permitted a maximum of
                 |10-bit precision in each direction.
                 |8-bit precision is the minimum allowed.
--------------------------------------------------------
Left-shift,      |These features are implemented with
right-shift,     |single buttons mounted on the base of
stop, play/pause |the extended joystick.
--------------------------------------------------------

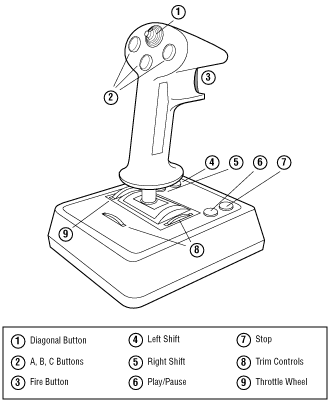

Figure 1 shows the placement of controls on the extended joystick.

Graphic cannot be displayed

Figure 1: Extended joystick controls.

Bit Order

When 8-bit precision is used, the two least-significant bits are padded with zeros to fill all 10 bits available, as shown in Figure 2.

Graphic cannot be displayed

Figure 2: Bit layout for 8-bit precision.
