This section lists the requirements for incorporating light gun support in
titles development, and describes how the light gun works with cathode ray
tube (CRT) displays.
Requirements
Requirements for incorporating light gun support in titles development
include:
Light gun
Light gun driver (included in the 3DO Portfolio operating system)
With CRT displays, the light gun reports the time lapse between the
beginning of a field (vertical blank) and when the scan beam passes into
the field of view of the gun's light sensor. Based on the timer values the
light gun returns, positions are calculated from the time elapsed between
the start of one scan line and the start of one immediately below it
(YSCANTIME); x values (XSCANTIME) are determined by the time it takes to
draw from the first to last pixel on one scan line. A third value,
TIMEOFFSET, is based on the time lapse between when a field begins and
when a scan beam begins drawing to the first pixel on the first scan
line.
The NTSC and PAL standards require slightly different values for these
time constants. This is to account for the different screen resolution and
the speed at which the electron beam draws in the display. The time values
are provided in the lightgun.h file.
The light gun does not work with PCs because of
variation in refresh rates and electron beam gun speed among monitors.
The light gun does not work with LCD displays.

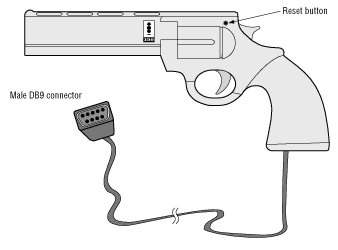

The illustration below shows the light gun and cable with male DB9
connector.
